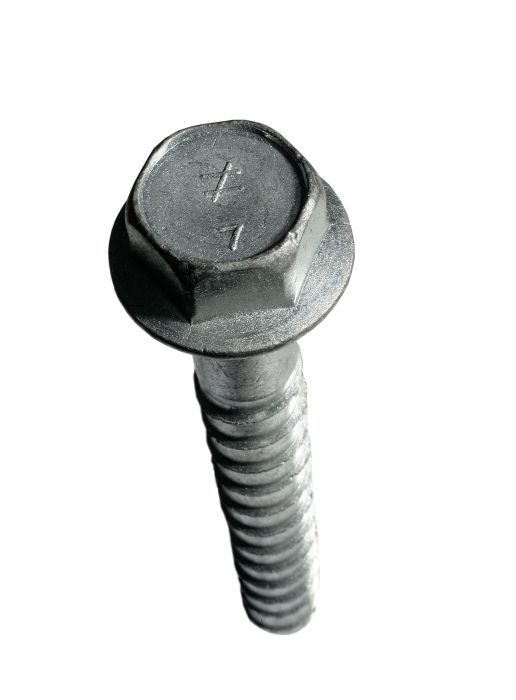

Simpson Strong-Tie Heavy-Duty Titen Anchor, 3/4" D x 6" L, Zinc Plated

This is the Simpson Strong-Tie original high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed and tested in dry, interior, non-corrosive environments or temporary outdoor applications, the Titen HD demonstrates industry-leading performance even in seismic conditions.

• Code listed under IBC/IRC in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete per ICC-ES ESR-2713
• Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
• Qualified for static and seismic loading conditions
• Thread design undercuts to efficiently transfer the load to the base material
• Standard fractional sizes
• Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
• No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
• Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors
• Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
• Removable, ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
• Reuse of the anchor to achieve listed load values is not recommended
• 3/4-inch diameter x 6-inches long
• Zinc plated
